更多圖片

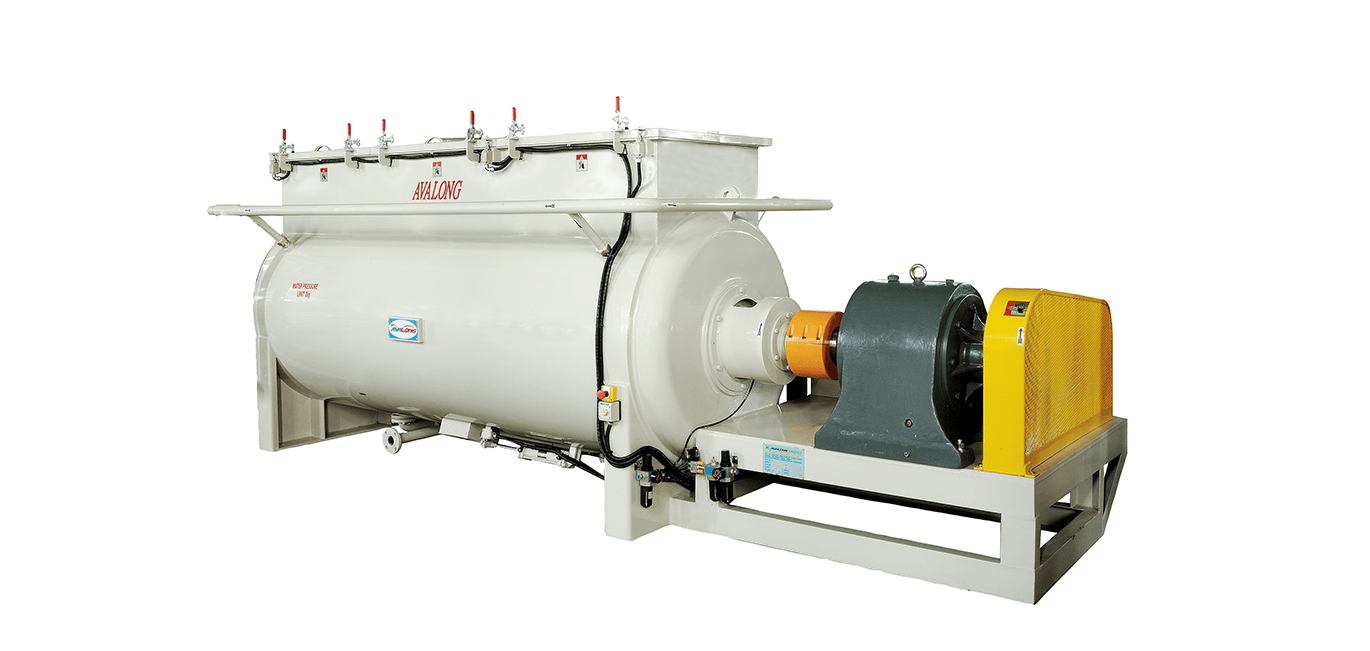

單帶攪拌軸組
雙帶攪拌軸組
規格表
| 型式 | 容量 | 物料入量 | 混合重量 | 主電源 | 副機動力 | 機械尺寸 | 機械重量 |
| CL-H100 | - | 35-70L | 40kg | 5HP·4P | - | 1800x650x1250mm | 450kg |
| CL-H200 | - | 70-140L | 80kg | 5HP·4P | - | 2040x850x1450mm | 750kg |
| CL-H400 | - | 150-300L | 240kg | 7.5HP·4P | - | 2200x900x1500mm | 900kg |
| CL-H600 | - | 200-400L | 240kg | 10HP·4P | - | 2430x950x1750mm | 1100kg |
| CL-H1000 | - | 350~700L | 360kg | 15HP·4P | - | 2600x1060x730mm | 1300kg |
| CL-H1500 | - | 500~1000L | 540kg | 20HP‧4P | - | 2850x1100x1830mm | 1700kg |
| CL-H2000 | - | 700-1400L | 720kg | 25HP·4P | - | 3150x1150x1950mm | 2100kg |
| CL-H3000 | - | 1400-2100L | 1080kg | 30HP·4P | - | 3300x500x2000mm | 3000kg |
| CL-H3500 | - | 1800-2450L | 1225kg | 40HP·4P | - | 3500x500x2000mm | 3200kg |
| CL-H4000 | - | 2100-2800L | 1400kg | 40HP·4P | - | 4000x500x2500mm | 3500kg |
| CL-H5000 | - | 2000-3500L | 1750kg | 40HP·4P | - | 4500x550x2500mm | 4000kg |
