CL-D Horizontal Mixer (U-Type Single Ribbon)
Features
Single ribbon or double ribbon mixing blade to be designated by the customer; the double ribbon mixing blade can blend the material more evenly.
Photos

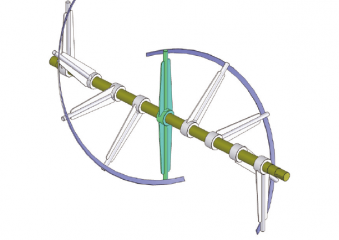

SINGLE RIBBON MIXING BLADE

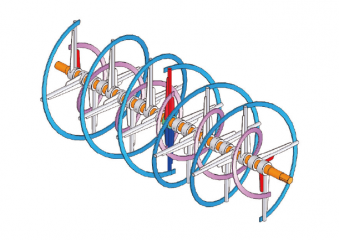

DOUBLE RIBBON MIXING BLADE
Specifications
| Model | Capacity | Tank Capacity | Mixing Weight | Main Power | Auxiliary Power | Machine Size | Machine Weight |
| CL-D100 | - | 35~70L | 40kg | 5HP‧4P | - | 1800x650x1250mm | 400kg |
| CL-D200 | - | 70~140L | 80kg | 5HP‧4P | - | 2040x850x1450mm | 750kg |
| CL-D400 | - | 150~300L | 150kg | 7.5HP‧4P | - | 2200x900x1500mm | 900kg |
| CL-D600 | - | 200~400L | 240kg | 10HP‧4P | - | 2430x950x1650mm | 1100kg |
| CL-D1000 | - | 350~700L | 360kg | 15HP‧4P | - | 2600x1016x1650mm | 1300kg |
| CL-D1500 | - | 500~1000L | 540kg | 20HP‧4P | - | 2850x1100x1830mm | 1700kg |
| CL-D2000 | - | 700~1400L | 720kg | 25HP‧4P | - | 3150x1150x1950mm | 2100kg |
| CL-D3000 | - | 1000~2000L | 1100kg | 30HP‧4P | - | 3360x1250x2200mm | 2800kg |
| CL-D4000 | - | 1400~2800L | 1500kg | 40HP‧6P | - | 4000x1450x2500mm | 3650kg |
| CL-D5000 | - | 2000~3500L | 2100kg | 50HP‧6P | - | 4500x1550x2500mm | 4500kg |
| CL-D6000 | - | 3000~4200L | 2500kg | 60HP‧6P | - | 5200x1700x2500mm | 5350kg |
| CL-D8000 | - | 4000~5600L | 3500kg | 75HP‧6P | - | 5700x1880x2500mm | 6250kg |
| CL-D10000 | - | 5000~7000L | 4000kg | 100HP‧6P | - | 5870x2150x2500mm | 7150kg |
